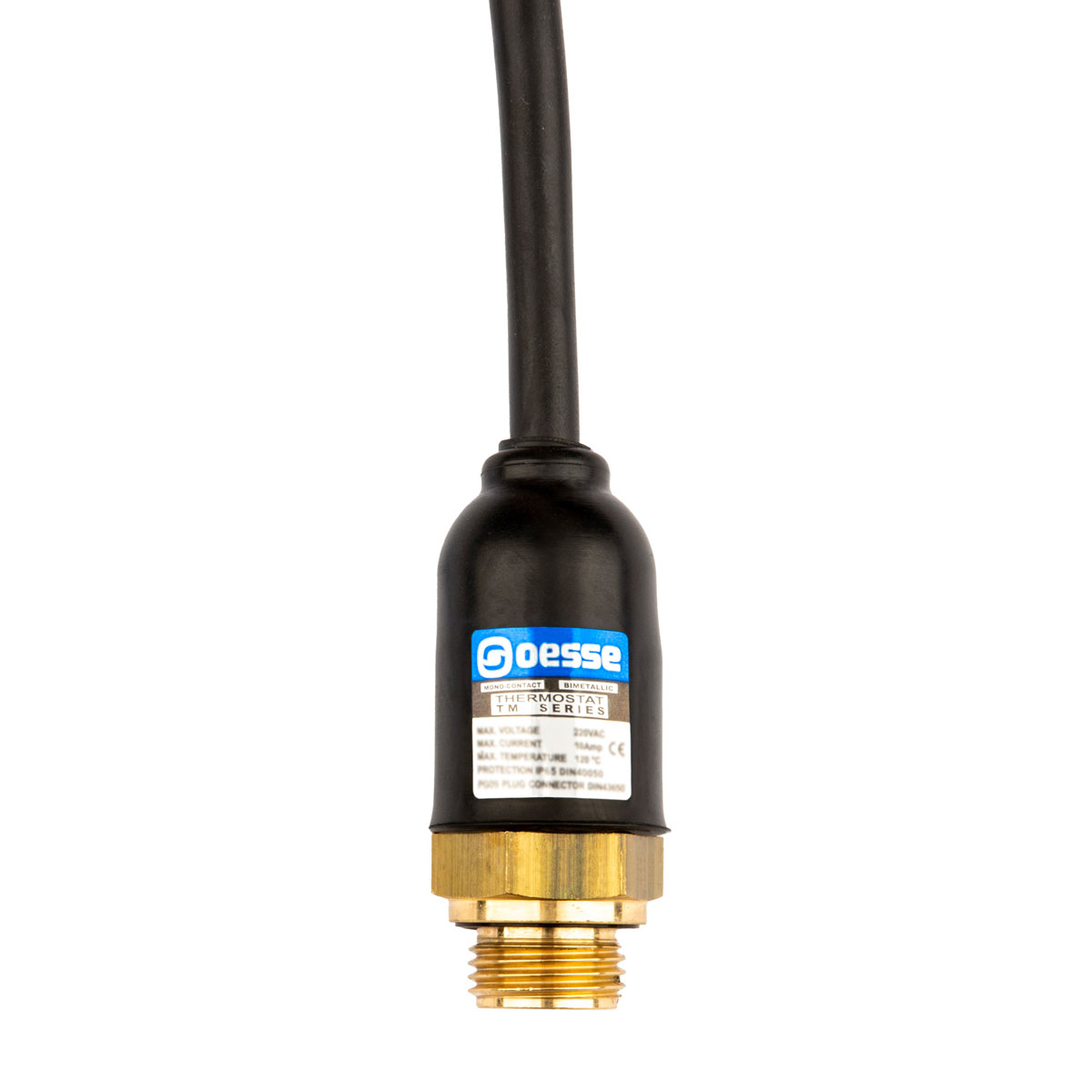

Термостат TE073 T40 1/2"G

TE073.00 – Bimetallic Thermostat 40°C 1/2”G IP65 Bimetallic thermostats that allow the opening of an electrical circuit in order to reach a fixed temperature. Technical features Working temperature: -20°C ÷ 120°C Fixed hysteresis value: ~ 12°C of the set value Switching accuracy: ± 3.5°C Maximum temperature gradient: 1°C / min Body: in hexagonal brass, CH24, 27 or 30 according to the type Electrical features Electrical protection according to CEI EN 60529, IP65, IP67 standards Electrical connection according to DIN43650, M3 standards 360° rotatable connector Maximum contact load: AC 125V - 15A / 220V - 10A; DC 12V - 10A / 24V - 5A
